This post is a continuation of a series about how AI agents might aid in the diagnosis of rare diseases in genomics. See the previous three posts for additional context:

Introduction

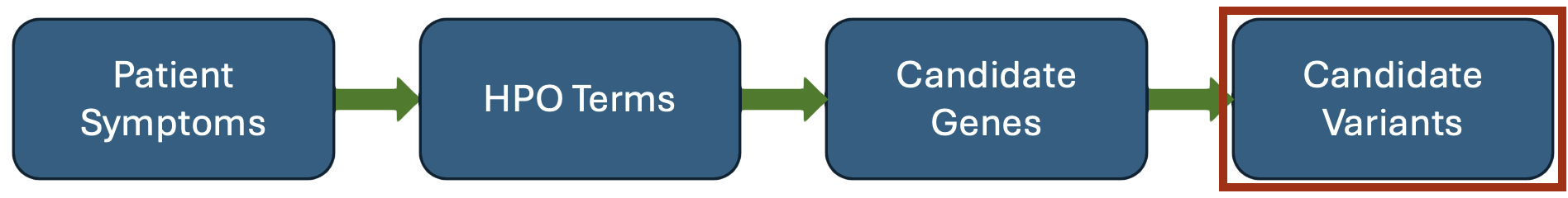

agent flowchart with candidate variants highlighted

As the last agent in the workflow, the Variant Agent’s job is to search for potentially diagnostic variants within the ranked candidate genes provided by the Gene Agent, using a variant search tool.

The Variant Agent is the most technically complex of the three agents in the system, as it requires more extensive instructions than the other two agents and access to a more sophisticated variant search tool. This first post about the Variant Agent will describe the processing needed to take variants in a VCF file and get them annotated and loaded into a searchable database. The next post will continue with the implementation of the search tool and the agent itself.

Example data

In my original post introducing the AI agent system, I used my own genomic sequencing data to test out the system. To make it possible to follow along, I’ll be using publicly accessible genomic sequencing data in this post. These datasets are available from the International Genome Sample Resource.

I selected the Colombian family HG01466 (daughter), HG01464 (father), and HG01465 (mother). This trio is included in a large multi-sample VCF, so I used bcftools to stream each chromosome and select only the three samples, removing the extraneous INFO fields at the same time. I also filtered out any records where the proband (HG01466) had a reference genotype.

set -e
set -o pipefail

for CHR in {1..22} X Y; do
  CHR="chr${CHR}"
  echo "Downloading VCF for chromosome $CHR..."
  S3_URL="s3://1000genomes/1000G_2504_high_coverage/working/20201028_3202_raw_GT_with_annot/20201028_CCDG_14151_B01_GRM_WGS_2020-08-05_${CHR}.recalibrated_variants.vcf.gz"
  bcftools view \
    --threads 4 \
    -s HG01466,HG01464,HG01465 \
    -i 'GT[0] ~ "[1-9]"' \
    -Ou \
    $S3_URL \
    | bcftools annotate \
        -x INFO \
        -Oz \
        -o colombian_trio.${CHR}.vcf.gz \
        --threads 2
done

Once all chromosomes were downloaded, I merged them into a single VCF. As this is whole-genome sequencing data, there are over 5 million variants in the VCF. To make things a bit more manageable, I decided to filter it down to something close to exome sequencing. I picked a common exome targets file (IDT’s xGen Exome Panel), expanded each target by 150bp on each side, and made a new VCF with the variants restricted to those expanded exome target regions. This reduced the number of variants to about 140,000.

Variant annotation

For the Variant Agent to perform its task, it needs to be able to query for variants using a number of criteria, such as:

  • Affected gene
  • Consequence (stop gain, frameshift, missense, etc.)
  • Population frequency (gnomAD)
  • ClinVar classification

To obtain these annotations for each variant, I decided to use Illumina’s Nirvana variant annotation tool. While the open-source version is no longer maintained, it can still run with slightly outdated annotation resources. Nirvana is both fast and has a well-defined JSON output format, which made it much easier to load the annotations into a database for searching.

Annotating a VCF with Nirvana first requires you to download the annotation data. Unfortunately, Nirvana does not natively execute on Apple Silicon systems, so I used an Amazon EC2 instance to perform the annotation steps:

# Download GRCh38 annotation data
mkdir /scratch/Data
dotnet Downloader.dll --ga GRCh38 -o /scratch/Data

# Annotate a VCF
dotnet Nirvana.dll \
  -c /scratch/Data/Cache/GRCh38/Both \
  -r /scratch/Data/References/Homo_sapiens.GRCh38.Nirvana.dat \
  --sd /scratch/Data/SupplementaryAnnotation/GRCh38 \
  -i colombian_trio.exome.vcf.gz \
  -o colombian_trio.exome

The above will produce colombian_trio.exome.json.gz, a compressed JSON in Nirvana’s output format. The first variant in the file looks like this (I deleted the gnomAD subpopulation entries to save space):

{
  "chromosome": "chr1",
  "position": 69270,
  "refAllele": "A",
  "altAlleles": [
    "G"
  ],
  "quality": 464400,
  "filters": [
    "VQSRTrancheSNP99.80to100.00"
  ],
  "cytogeneticBand": "1p36.33",
  "samples": [
    {
      "genotype": "1/1",
      "variantFrequencies": [
        1
      ],
      "totalDepth": 6,
      "genotypeQuality": 18,
      "alleleDepths": [
        0,
        6
      ]
    },
    {
      "genotype": "1/1",
      "variantFrequencies": [
        1
      ],
      "totalDepth": 3,
      "genotypeQuality": 9,
      "alleleDepths": [
        0,
        3
      ]
    },
    {
      "genotype": "1/1",
      "variantFrequencies": [
        1
      ],
      "totalDepth": 9,
      "genotypeQuality": 27,
      "alleleDepths": [
        0,
        9
      ]
    }
  ],
  "variants": [
    {
      "vid": "1-69270-A-G",
      "chromosome": "chr1",
      "begin": 69270,
      "end": 69270,
      "refAllele": "A",
      "altAllele": "G",
      "variantType": "SNV",
      "hgvsg": "NC_000001.11:g.69270A>G",
      "phylopScore": 0.8,
      "regulatoryRegions": [
        {
          "id": "ENSR00000000012",
          "type": "open_chromatin_region",
          "consequence": [
            "regulatory_region_variant"
          ]
        }
      ],
      "dbsnp": [
        "rs201219564"
      ],
      "gmeVariome": {
        "allAc": 518,
        "allAn": 742,
        "allAf": 0.6981
      },
      "gnomad": {
        "coverage": 29,
        "failedFilter": true,
        "allAf": 0.62857
      },
      "gnomad-exome": {
        "coverage": 29,
        "failedFilter": true,
        "allAf": 0.878137
      },
      "topmed": {
        "allAf": 0.274592,
        "allAn": 125568,
        "allAc": 34480,
        "allHc": 11,
        "failedFilter": true
      },
      "dannScore": 0.58,
      "gerpScore": -2.89,
      "transcripts": [
        {
          "transcript": "ENST00000641515.1",
          "source": "Ensembl",
          "bioType": "protein_coding",
          "codons": "tcA/tcG",
          "aminoAcids": "S",
          "cdnaPos": "303",
          "cdsPos": "180",
          "exons": "3/3",
          "proteinPos": "60",
          "geneId": "ENSG00000186092",
          "hgnc": "OR4F5",
          "consequence": [
            "synonymous_variant"
          ],
          "hgvsc": "ENST00000641515.1:c.180A>G",
          "hgvsp": "ENST00000641515.1:c.180A>G(p.(Ser60=))",
          "isCanonical": true,
          "proteinId": "ENSP00000493376.1"
        },
        {
          "transcript": "ENST00000335137.4",
          "source": "Ensembl",
          "bioType": "protein_coding",
          "codons": "tcA/tcG",
          "aminoAcids": "S",
          "cdnaPos": "216",
          "cdsPos": "180",
          "exons": "1/1",
          "proteinPos": "60",
          "geneId": "ENSG00000186092",
          "hgnc": "OR4F5",
          "consequence": [
            "synonymous_variant"
          ],
          "hgvsc": "ENST00000335137.4:c.180A>G",
          "hgvsp": "ENST00000335137.4:c.180A>G(p.(Ser60=))",
          "proteinId": "ENSP00000334393.3"
        },
        {
          "transcript": "NM_001005484.1",
          "source": "RefSeq",
          "bioType": "protein_coding",
          "codons": "tcA/tcG",
          "aminoAcids": "S",
          "cdnaPos": "180",
          "cdsPos": "180",
          "exons": "1/1",
          "proteinPos": "60",
          "geneId": "79501",
          "hgnc": "OR4F5",
          "consequence": [
            "synonymous_variant"
          ],
          "hgvsc": "NM_001005484.1:c.180A>G",
          "hgvsp": "NM_001005484.1:c.180A>G(p.(Ser60=))",
          "isCanonical": true,
          "proteinId": "NP_001005484.1"
        }
      ]
    }
  ]
}

While Nirvana’s JSON format does have a proprietary index that allows for rapid querying by genomic position (similar to tabix), we need more than just position-based searching. To accommodate all the required search criteria, we will need to insert all of these variants into a database.

Building a variant database

I chose DuckDB for the variant database because it’s an in-process database engine that stores its data in a single file and delivers excellent query performance.

The first step is to define our schema. I decided on this fairly minimal set of columns to store, along with the full JSON of the variant entry so we can retrieve additional annotation data later if we want. It covers all the query parameters we’ll later provide to the Variant Agent via the variant search tool:

CREATE TABLE IF NOT EXISTS variants (
  vid                     VARCHAR NOT NULL,
  chromosome              VARCHAR NOT NULL,
  variant_index           INTEGER NOT NULL,
  position                INTEGER NOT NULL,
  quality                 DOUBLE NOT NULL,
  begin_pos               INTEGER NOT NULL,
  end_pos                 INTEGER NOT NULL,
  ref_allele              VARCHAR NOT NULL,
  alt_allele              VARCHAR NOT NULL,
  genotype                VARCHAR,
  genotype_quality        DOUBLE,
  total_depth             INTEGER,
  allele_depths           INTEGER[],
  maternal_genotype       VARCHAR,
  paternal_genotype       VARCHAR,
  variant_type            VARCHAR,
  gene_symbols            VARCHAR[],
  canonical_transcripts   VARCHAR[],
  transcript_consequences VARCHAR[],
  gnomad_af               DOUBLE,
  clinvar_classifications VARCHAR[],
  raw                     JSON NOT NULL,
  PRIMARY KEY (vid, chromosome)
);

CREATE INDEX IF NOT EXISTS v_chr_begin_idx ON variants(chromosome, begin_pos);
CREATE INDEX IF NOT EXISTS v_gnomad_af_idx ON variants(gnomad_af);

Loading the variants into the database requires that we parse each Nirvana position entry, enumerate each variant present, and insert the relevant annotation data into the variants table. We also want to perform the insertions in batches to avoid reading the entire JSON file in memory. To accomplish this, we can use the Python ijson package to stream the JSON position entries from the compressed JSON file.

I wrote the Python script below to perform the variant loading. Additionally, it creates three mapping tables to make searching the gene_symbols, transcript_consequences, and clinvar_classifications columns easier. While DuckDB has a few native methods for efficiently querying list columns, I plan to use SQLAlchemy for the variant query tool and these mapping columns will make the implementation easier.

import argparse
import gzip
import json
from decimal import Decimal
from typing import Any, Dict, Iterable, List
import ijson
import duckdb


def decimal_default(obj: Any):
    """JSON serializer for Decimal types."""
    if isinstance(obj, Decimal):
        return float(obj)
    raise TypeError


def stream_positions(json_gz_path: str) -> Iterable[Dict[str, Any]]:
    """
    Stream position objects from a gzipped JSON file.
    """
    with gzip.open(json_gz_path, "rb") as f:
        yield from ijson.items(f, "positions.item")


def create_variant_table(conn: duckdb.DuckDBPyConnection):
    """Ensure the variant table exists with the appropriate schema."""
    conn.execute(
        """
        CREATE TABLE IF NOT EXISTS variants (
            vid                     VARCHAR NOT NULL,
            chromosome              VARCHAR NOT NULL,
            variant_index           INTEGER NOT NULL,
            position                INTEGER NOT NULL,
            quality                 DOUBLE NOT NULL,
            begin_pos               INTEGER NOT NULL,
            end_pos                 INTEGER NOT NULL,
            ref_allele              VARCHAR NOT NULL,
            alt_allele              VARCHAR NOT NULL,
            genotype                VARCHAR,
            genotype_quality        DOUBLE,
            total_depth             INTEGER,
            allele_depths           INTEGER[],
            maternal_genotype       VARCHAR,
            paternal_genotype       VARCHAR,
            variant_type            VARCHAR,
            gene_symbols            VARCHAR[],
            canonical_transcripts   VARCHAR[],
            transcript_consequences VARCHAR[],
            gnomad_af               DOUBLE,
            clinvar_classifications VARCHAR[],
            raw                     JSON NOT NULL,
            PRIMARY KEY (vid, chromosome)
        );

        CREATE INDEX IF NOT EXISTS v_chr_begin_idx ON variants(chromosome, begin_pos);
        CREATE INDEX IF NOT EXISTS v_gnomad_af_idx ON variants(gnomad_af);
        """
    )


def create_mapping_tables(conn: duckdb.DuckDBPyConnection):
    """Create mapping tables for variants."""
    conn.execute(
        """
        DROP TABLE IF EXISTS variant_genes;
        CREATE TABLE variant_genes AS
        SELECT
        vid,
        chromosome,
        UNNEST(gene_symbols) AS gene_symbol
        FROM variants
        WHERE gene_symbols IS NOT NULL;

        CREATE INDEX vg_gene_idx ON variant_genes(gene_symbol);
        CREATE INDEX vg_vid_chr_idx ON variant_genes(vid, chromosome);

        DROP TABLE IF EXISTS variant_consequences;
        CREATE TABLE variant_consequences AS
        SELECT
        vid,
        chromosome,
        UNNEST(transcript_consequences) AS consequence
        FROM variants
        WHERE transcript_consequences IS NOT NULL;

        CREATE INDEX vtc_consequence_idx ON variant_consequences(consequence);
        CREATE INDEX vtc_vid_chr_idx ON variant_consequences(vid, chromosome);

        DROP TABLE IF EXISTS clinvar_classifications;
        CREATE TABLE clinvar_classifications AS
        SELECT
        vid,
        chromosome,
        UNNEST(clinvar_classifications) AS classification
        FROM variants
        WHERE clinvar_classifications IS NOT NULL;

        CREATE INDEX vcc_classification_idx ON clinvar_classifications(classification);
        CREATE INDEX vcc_vid_chr_idx ON clinvar_classifications(vid, chromosome);
        """
    )


def batch_insert(
    conn: duckdb.DuckDBPyConnection, rows: List[tuple], columns: List[str]
):
    """Insert a batch of rows into the variants table."""
    placeholders = ", ".join("?" for _ in columns)
    conn.executemany(
        f"INSERT INTO variants ({', '.join(columns)}) VALUES ({placeholders})", rows
    )


def build_variant_record(
    variant: Dict[str, Any], variant_index: int, position: Dict[str, Any]
) -> Dict[str, Any]:
    """
    Build a variant record by combining variant and position information.
    """
    chromosome = position.get("chromosome")
    vid = variant.get("vid")
    vid_position = position.get("position")
    quality = position.get("quality")
    begin_pos = variant.get("begin")
    end_pos = variant.get("end")
    ref_allele = variant.get("refAllele")
    alt_allele = variant.get("altAllele")

    # Samples:
    # [0] = proband,
    # [1] = paternal (if present)
    # [2] = maternal (if present)
    samples = position.get("samples", [])
    proband = samples[0] if len(samples) > 0 else {}
    paternal = samples[1] if len(samples) > 1 else {}
    maternal = samples[2] if len(samples) > 2 else {}

    genotype = proband.get("genotype")
    if isinstance(genotype, str):
        genotype = genotype.replace("|", "/").replace(".", "0")
    genotype_quality = proband.get("genotypeQuality")
    total_depth = proband.get("totalDepth")
    allele_depths = proband.get("alleleDepths", [])
    if not isinstance(allele_depths, list):
        allele_depths = []

    paternal_genotype = paternal.get("genotype")
    maternal_genotype = maternal.get("genotype")
    if isinstance(paternal_genotype, str):
        paternal_genotype = paternal_genotype.replace("|", "/").replace(".", "0")
    if isinstance(maternal_genotype, str):
        maternal_genotype = maternal_genotype.replace("|", "/").replace(".", "0")

    variant_type = variant.get("variantType")

    # Transcripts: collect gene symbols, canonical transcripts, and flat consequences
    transcripts = variant.get("transcripts", [])
    gene_names = set()
    canonical_txs = set()
    consequences = set()

    for transcript in transcripts:
        gs = transcript.get("hgnc")
        if gs:
            gene_names.add(str(gs))

        is_canonical = transcript.get("isCanonical")
        if is_canonical:
            canonical_txs.add(transcript.get("transcript"))

        consequences.update(transcript.get("consequence", []))

    gnomad_af = variant.get("gnomad", {}).get("allAf")
    if gnomad_af is None:
        gnomad_af = 0.0

    clinvar_classifications = set()
    for clinvar_entry in variant.get("clinvar-preview", []):
        entry_classification = (
            clinvar_entry.get("classifications", {})
            .get("germlineClassification", {})
            .get("classification")
        )
        if entry_classification:
            clinvar_classifications.add(entry_classification)

    # Raw variant JSON text
    raw_json_text = json.dumps(variant, default=decimal_default)

    return {
        "chromosome": chromosome,
        "vid": vid,
        "variant_index": variant_index,
        "position": int(vid_position) if vid_position is not None else None,
        "quality": float(quality) if quality is not None else None,
        "begin_pos": int(begin_pos) if begin_pos is not None else None,
        "end_pos": int(end_pos) if end_pos is not None else None,
        "ref_allele": ref_allele,
        "alt_allele": alt_allele,
        "genotype": genotype,
        "genotype_quality": (
            float(genotype_quality) if genotype_quality is not None else None
        ),
        "total_depth": int(total_depth) if total_depth is not None else None,
        "allele_depths": [int(x) for x in allele_depths if isinstance(x, (int, float))],
        "paternal_genotype": paternal_genotype,
        "maternal_genotype": maternal_genotype,
        "variant_type": variant_type,
        "gene_symbols": list(gene_names),
        "canonical_transcripts": list(canonical_txs),
        "transcript_consequences": list(consequences),
        "gnomad_af": gnomad_af,
        "clinvar_classifications": list(clinvar_classifications),
        "raw": raw_json_text,
    }


def main():
    """Main function"""
    parser = argparse.ArgumentParser(description=__doc__)
    parser.add_argument(
        "-j",
        "--json",
        required=True,
        help="Path to gzipped Nirvana JSON (e.g., *.json.gz)",
    )
    parser.add_argument(
        "-d",
        "--db",
        required=True,
        help="DuckDB database file",
    )
    args = parser.parse_args()

    conn = duckdb.connect(args.db)
    create_variant_table(conn)

    total = 0
    batch = []
    batch_size = 5000
    seen = set()

    cols = [
        "chromosome",
        "vid",
        "variant_index",
        "position",
        "quality",
        "begin_pos",
        "end_pos",
        "ref_allele",
        "alt_allele",
        "genotype",
        "genotype_quality",
        "total_depth",
        "allele_depths",
        "paternal_genotype",
        "maternal_genotype",
        "variant_type",
        "gene_symbols",
        "canonical_transcripts",
        "transcript_consequences",
        "gnomad_af",
        "clinvar_classifications",
        "raw",
    ]

    conn.execute("BEGIN;")
    try:
        for position in stream_positions(args.json):
            for variant_index in range(len(position.get("variants", []))):
                variant = position["variants"][variant_index]

                key = variant.get("vid")
                if key in seen:
                    continue
                seen.add(key)

                record = build_variant_record(variant, variant_index, position)
                row_tuple = tuple(record[c] for c in cols)
                batch.append(row_tuple)

            if len(batch) >= batch_size:
                batch_insert(conn, batch, cols)
                total += len(batch)
                print(f"Inserted {total:,} records...")
                batch.clear()

        if batch:
            batch_insert(conn, batch, cols)
            total += len(batch)
            batch.clear()

        conn.execute("COMMIT;")
    except Exception:
        conn.execute("ROLLBACK;")
        raise

    print(f"Total processed variants: {total:,}")

    create_mapping_tables(conn)
    conn.close()
    print("Done.")


if __name__ == "__main__":
    main()

Running the script will produce a DuckDB database file with the variants table populated:

python load_variants.py \
  --db colombian_trio.exome.duckdb \
  --json colombian_trio.exome.json.gz

Querying the variant database

With the variants loaded into the database, we can now perform some example queries in preparation for building the variant search tool. First, we want to be able to search by gene symbols. As I mentioned previously, I plan to use SQLAlchemy for querying the database, so we’ll set that up:

import warnings
import json
from sqlalchemy import (
    create_engine,
    MetaData,
    Table,
    select,
    exc as sa_exc,
)
from duckdb_engine import DuckDBEngineWarning
import pandas as pd

warnings.simplefilter("ignore", sa_exc.SAWarning)
warnings.simplefilter("ignore", DuckDBEngineWarning)

engine = create_engine("duckdb:///colombian_trio.exome.duckdb")

conn = engine.connect()
md = MetaData()
v = Table("variants", md, autoload_with=conn)
vg = Table("variant_genes", md, autoload_with=conn)
vc = Table("variant_consequences", md, autoload_with=conn)
cc = Table("clinvar_classifications", md, autoload_with=conn)

Querying based on a maximum gnomAD frequency is simplest, as we can directly reference the value in our WHERE clause:

gnomad_query = (
    select(
        v.c.chromosome,
        v.c.position,
        v.c.ref_allele,
        v.c.alt_allele,
        v.c.genotype,
        v.c.gnomad_af,
    )
    .where(v.c.gnomad_af < 0.05)
    .limit(5)
)

results = pd.read_sql_query(gnomad_query, conn)
print(results.to_string(index=False))

Output:

chromosome  position ref_allele alt_allele genotype  gnomad_af
      chr1     69849          G          A      0/1   0.040920
      chr1    931131       CCCT          -      0/1   0.000758
      chr1    935954          G          A      0/1   0.006587
      chr1    942335          C          A      1/1   0.000007
      chr1    943526         TT          -      1/3   0.023910

Searching by gene symbol efficiently involves a join between the variants and variant_genes tables, which would look like this:

gene_query = (
    select(
        v.c.chromosome,
        v.c.position,
        v.c.ref_allele,
        v.c.alt_allele,
        v.c.genotype,
        v.c.gene_symbols
    )
    .distinct()
    .join(vg, (vg.c.vid == v.c.vid) & (vg.c.chromosome == v.c.chromosome))
    .where(vg.c.gene_symbol == "MECP2")
)

results = pd.read_sql_query(gene_query, conn)
print(results)

Output:

chromosome  position ref_allele alt_allele genotype           gene_symbols
      chrX 154018741          A          G      1/1 [IRAK1, MIR718, MECP2]
      chrX 154019032          G          A      1/1 [IRAK1, MIR718, MECP2]

Queries for the other list columns with mapping tables follow the same format.

What’s next

With this post, we’ve laid all the groundwork needed to build out the Variant Agent. This included obtaining an example VCF for a trio, annotating the VCF using Nirvana, importing the resulting annotations into a searchable database, and performing some example searches using SQLAlchemy.

In the next post, we’ll build the variant search tool and define the Variant Agent’s input and instructions.
